Tannus Armour Insert 26"x4.0-4.8 (559x100-122) Fat *1
Tannus Armour Specific Size Tube：26"x4.0-4.8 *1
Photos
Tannus Anti-Puncture Insert with Inner Tube
Availability: In Stock
Shipping Time: Within 2 Business Days
Description

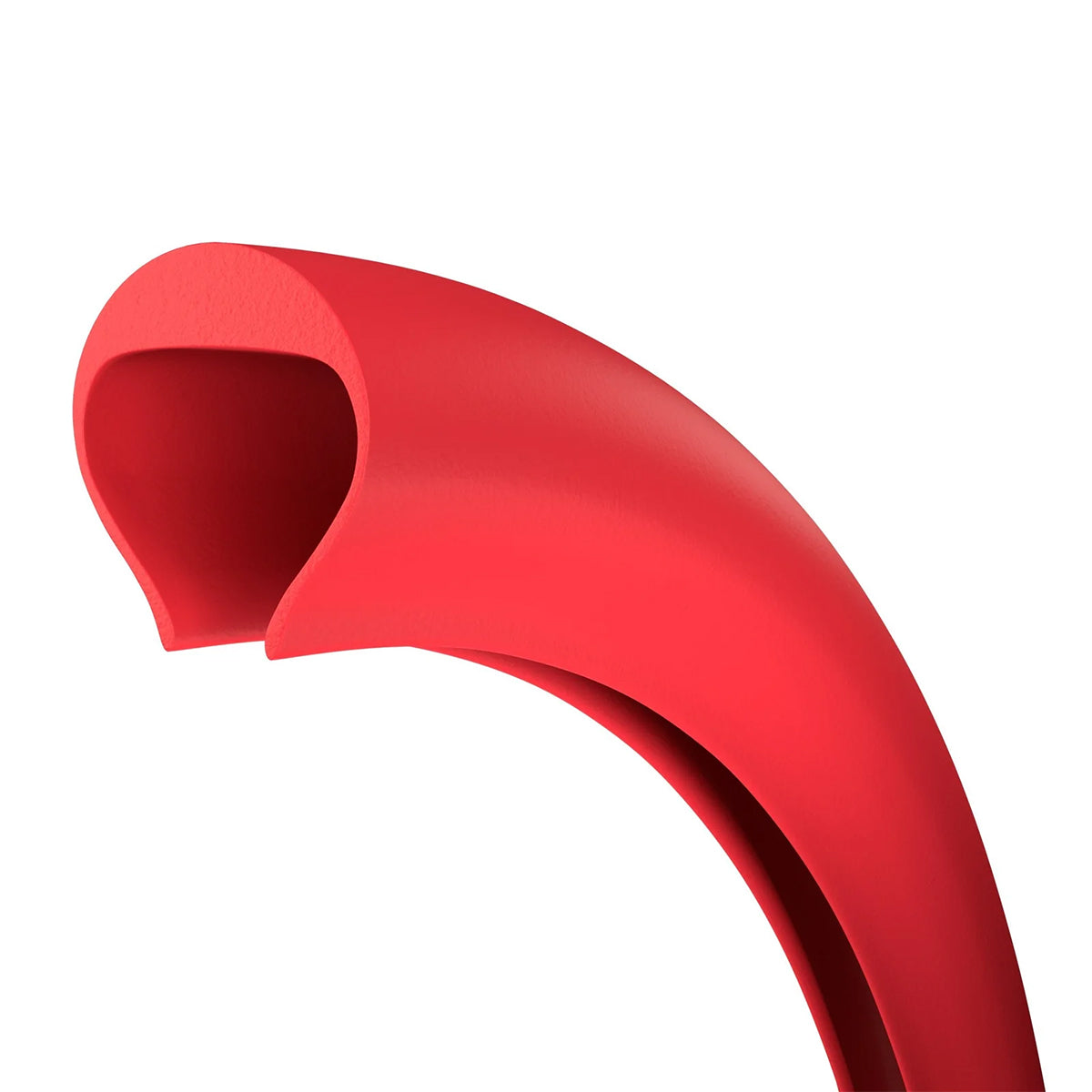

Tannus Armour protects your inner tube against 90% of flats using 15mm of multi-cell foam. The best anti-puncture protection for your bike. Say goodbye to punctures.
Product List：
Tannus Anti-Puncture Insert with Inner Tube
Sale price$85.99
Regular price$99.99 (/)
90%
Average Reduction of Punctures

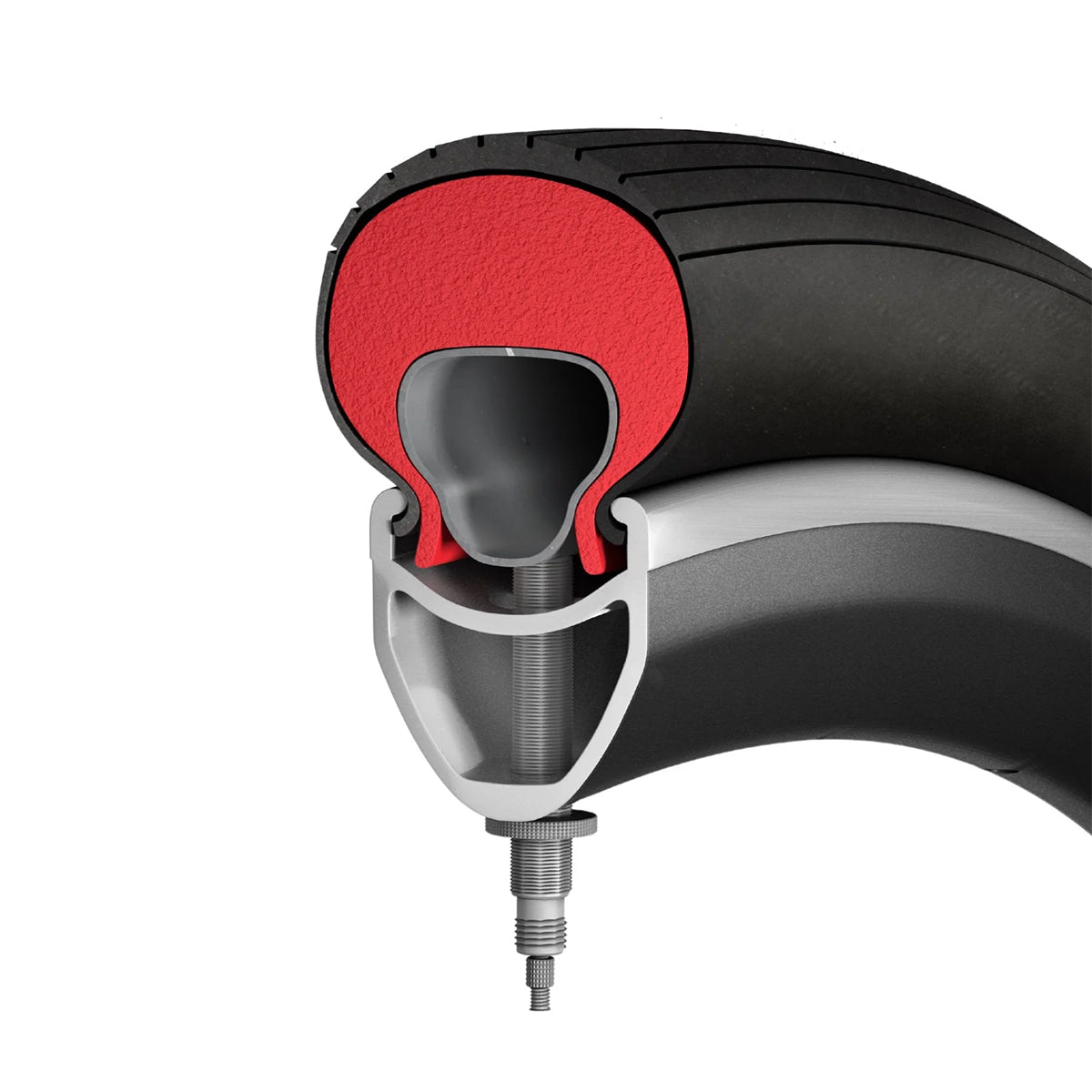

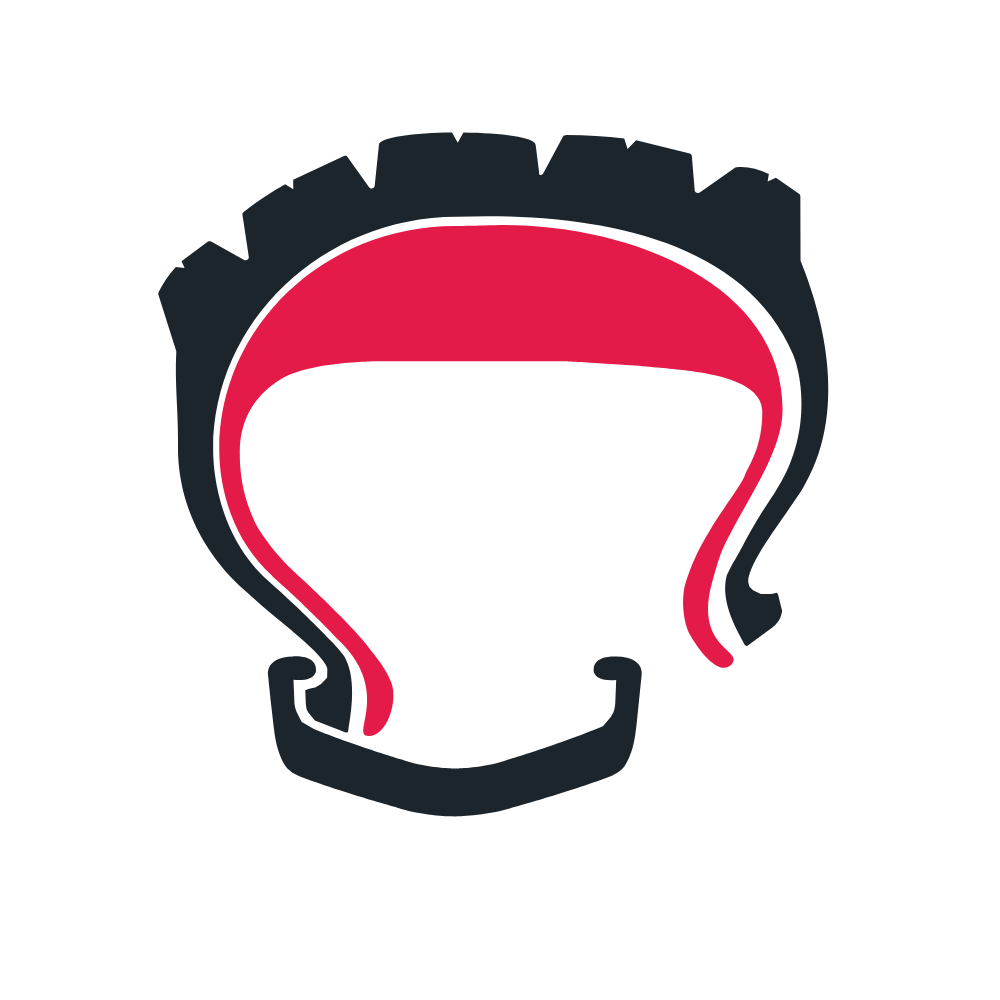

Armour is positioned between the inner tube and the tire. It offers15 mm of extra protection under the treadand 2-5 mm on the sides of the tire. Armour increases puncture protection, reduces maintenance and increases comfort.
90% Less Punctures
Armour drastically reduces punctures

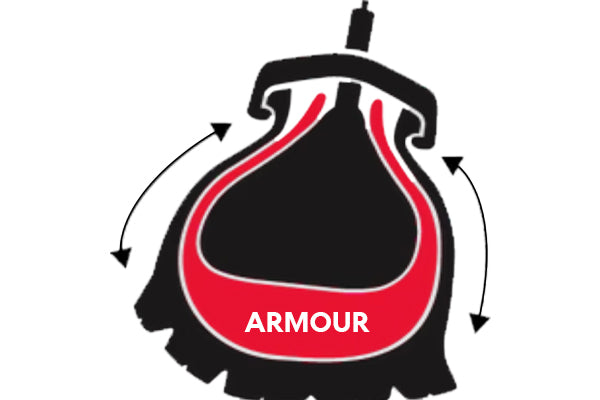

Side wall support
The insert reduces lateral cuts and internally supports the tire shoulder allowing the rider to have extra lateral support even at low pressures
Rim Protection
Armour greatly reduces rim damage
How to install Armour

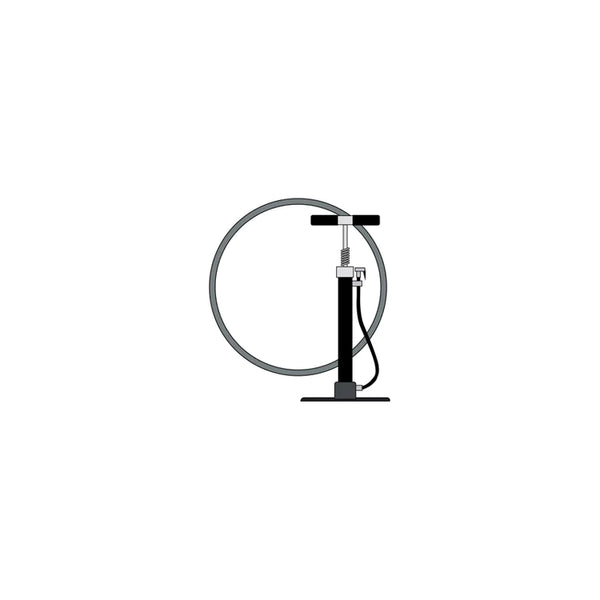

1. Inflate the inner tube slightly
Inflate the inner tube slightly. This makes assembly easier.

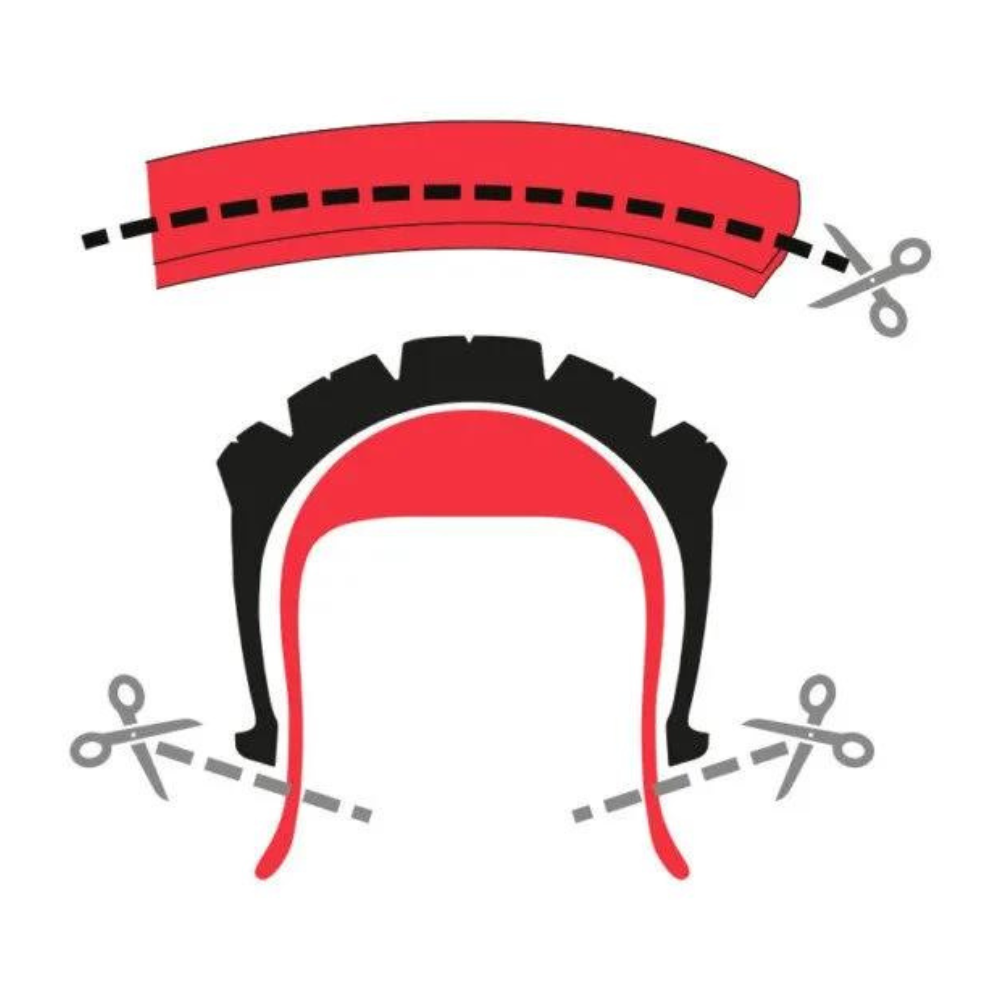

2. Evaluate the side wing cut
For some tires it is necessary to cut the side wings of the insert slightly so that they do not bend inwards during assembly. Place the insert inside the tire and make sure that the side wings of the insert do not protrude excessively from the tire. If the lateral wings are in excess, use scissors to trim the lateral wing of the insert on both sides.
3. Install First Bead of Tire and Armour
Place one side of the tire over the bead of the rim. Insert one side of the Armour inside the tire and over the rim.
4. Insert Inner Tube
Insert the inner tube valve through the rim valve hole. Place the inner tube inside the Tannus Armour. Make sure the Armour wings are not folded.

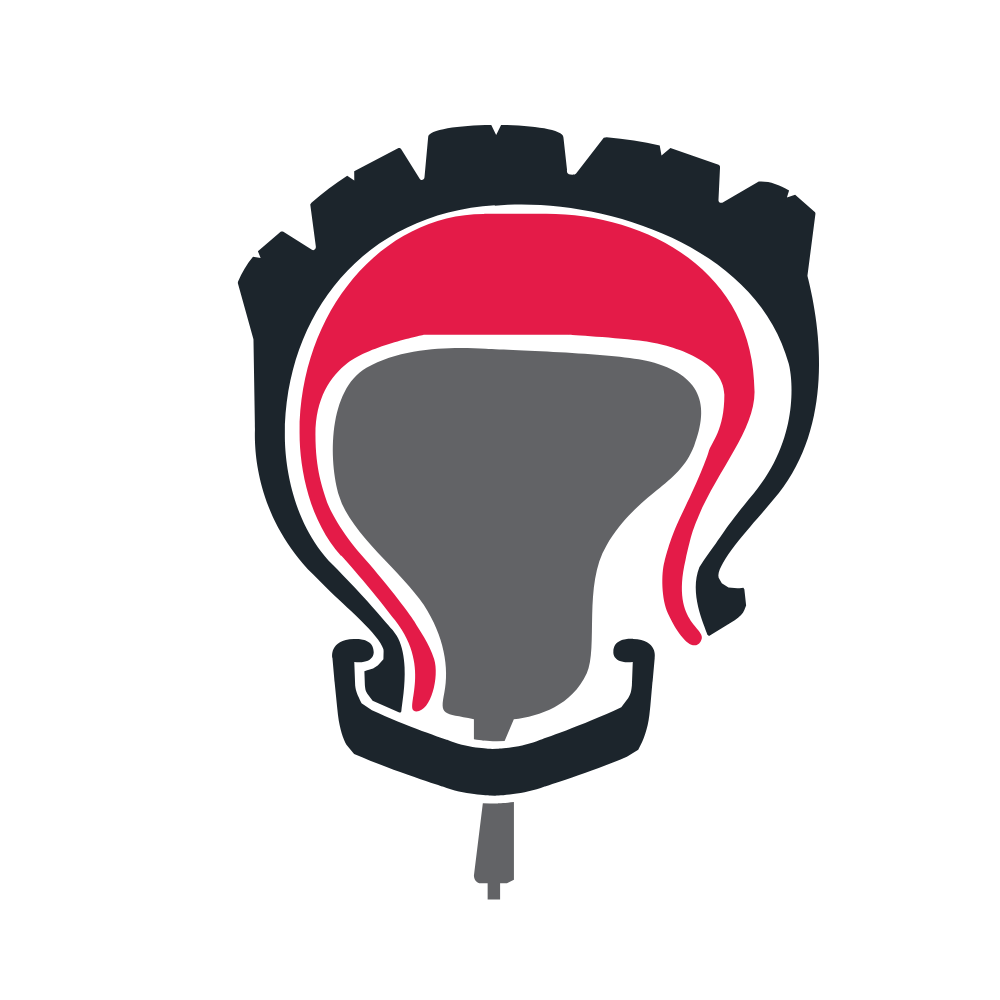

5. Mount Armour Into the Rim
Place the remaining exposed Armour flap over the rim under the bead.

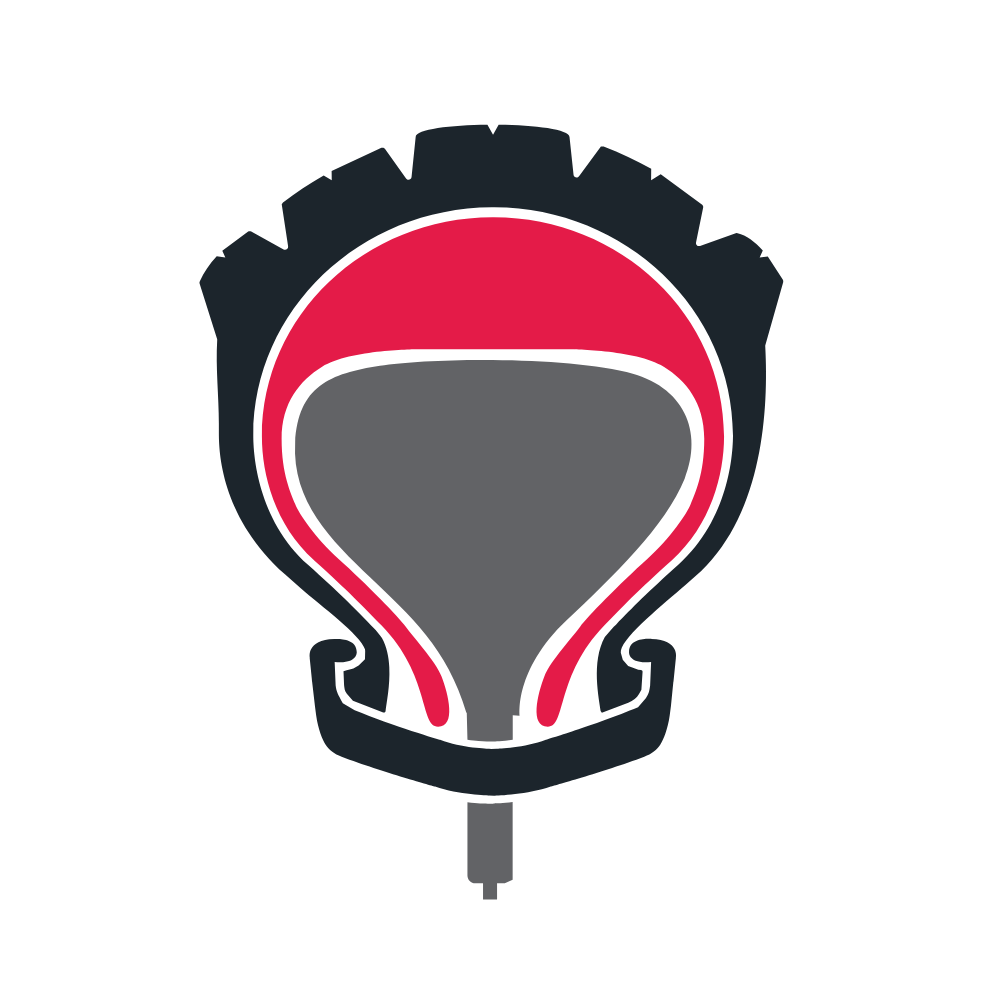

6. Finish, Check, and Inflate

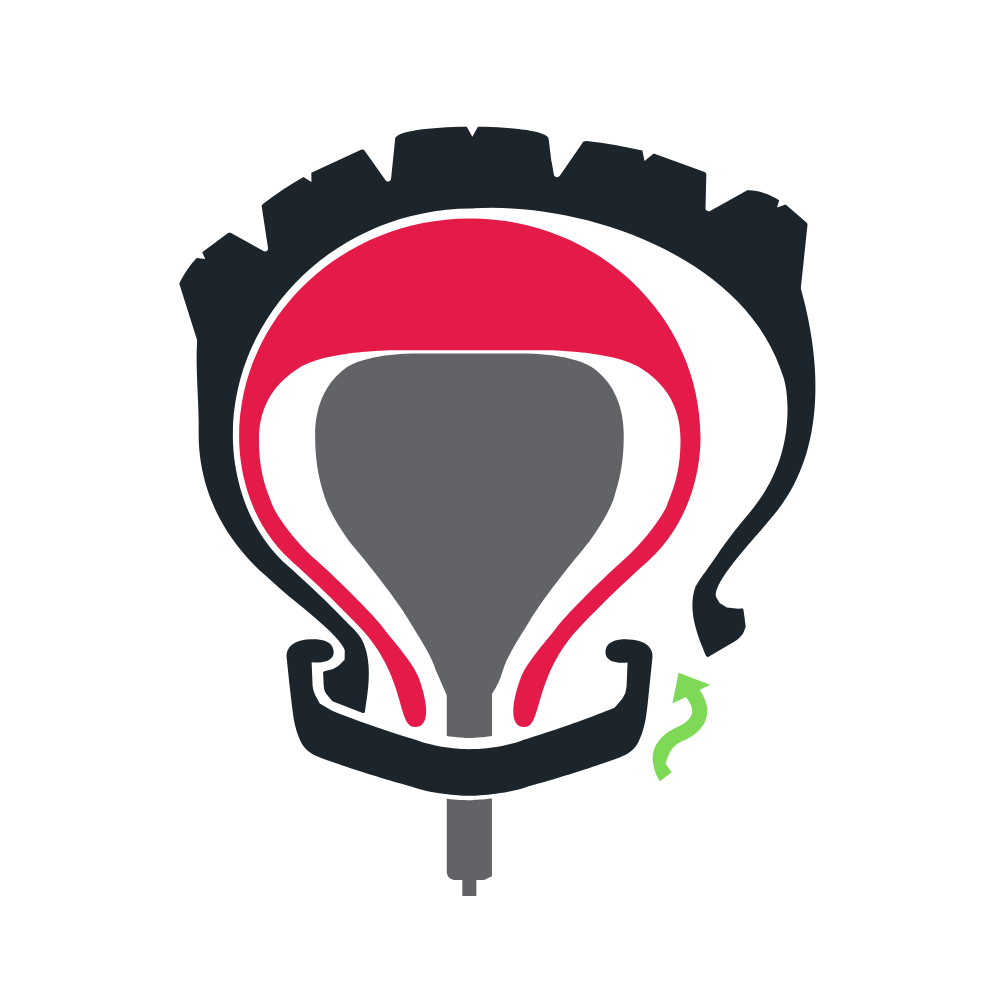

Secure the remaining side of the tire beading into the rim using a tire lever if needed.
Check that the tire has been installed correctly before inflating. Make sure the tire is not pinching the tube or the Armour between the tire bead and rim.
FAQs
What is Tannus Armour？

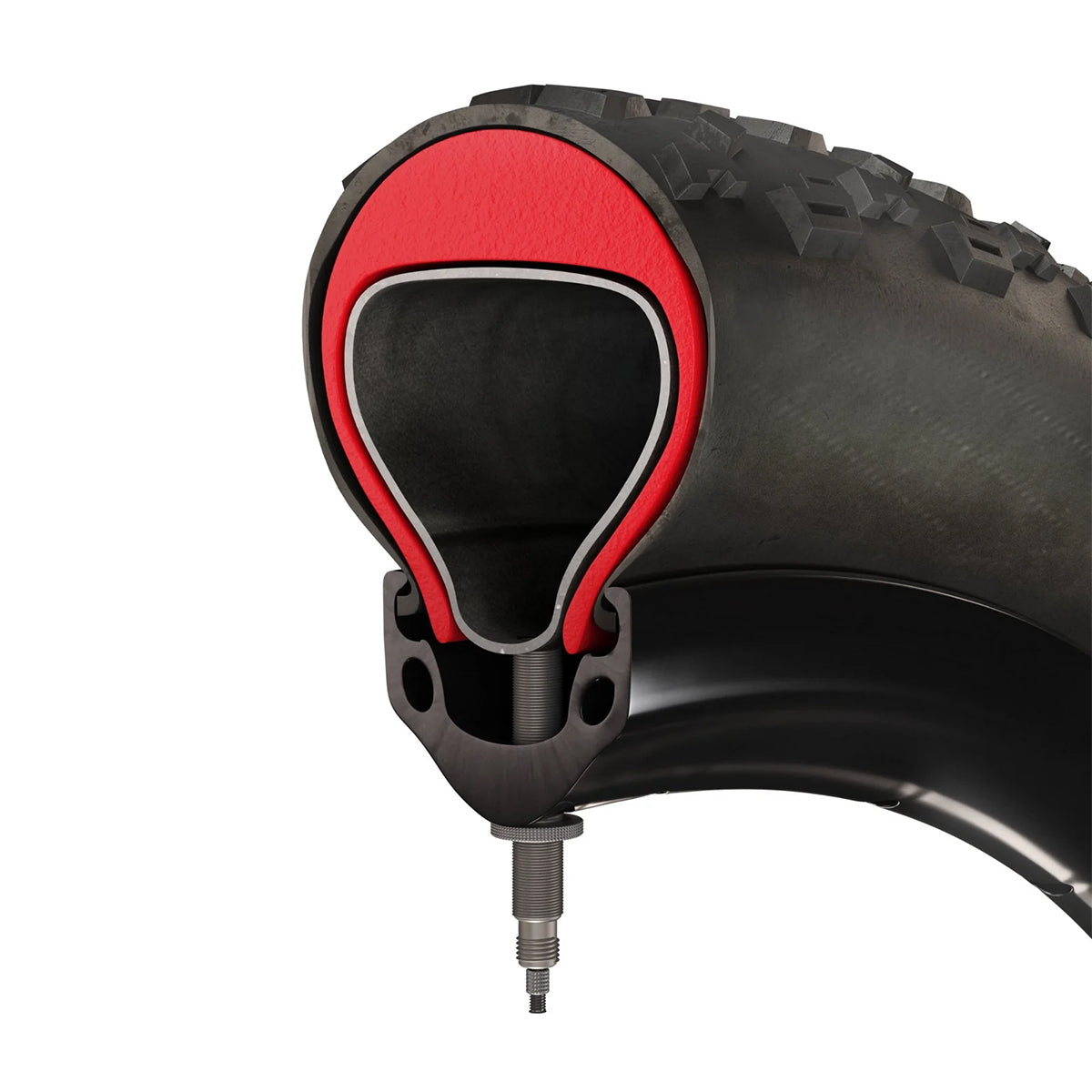

Tannus Armour is an insert that sits underneath the tire and over the tube. It offers puncture resistance, comfort, and enhanced riding capabilities.
Tannus Armour is made of a patented material called Aither. It’s a high quality foam-like polymer that offers vibration damping, a smoother ride, and puncture resistance.
Why get Armour
Without Tannus Armour, your inner tube is much more exposed to sharp objects and debris. Your rim can also be damaged from hard impacts. Tannus Armour protects both your inner tube and your rim.
Can I use Tubeless Sealant with Tannus Armour
No, the insert is designed to be used exclusively with an inner tube. Sealant, in addition to being detrimental to the insert and its durability, would have no additional use. In fact, by using the traditional inner tube and Armour you prevent pinching, side cuts, the burp effect and many ruined clothes. It is also advisable to clean the inside of the tire to remove any sealant residue inside it.
Armour Specifications
Tannus Armour weighs between 190-500 grams depending on the size. It provides 13-15mm of protection at it's thickest point and 2-5mm of sidewall protection.
What Pressure Should I Run？
Tire pressure is a personal preference depending on size of the rider and riding conditions. However, adding Tannus Armour does allow you to run lower pressure which gives better control, and comfort. We recommend starting out 0,1-0,5 BAR lower than what you normally ride and go up or down from there based on the ride feel you enjoy.
Does it Compress After Use？
The Armour will compress some after it’s installed depending on the pressure of the tire. The higher the pressure the more condensed the Armour will become. If you wish to keep the Armour as thick as possible then maintain a lower Bar. You may also deflate your tire if you’re not going to be riding for a longer period. This allows the Armour to rebound back to its original size.
Do I Need to Tighten the Inner Tube Valve Wheel？
It would be better to keep the valve as less tight as possible or even not put it at all.
